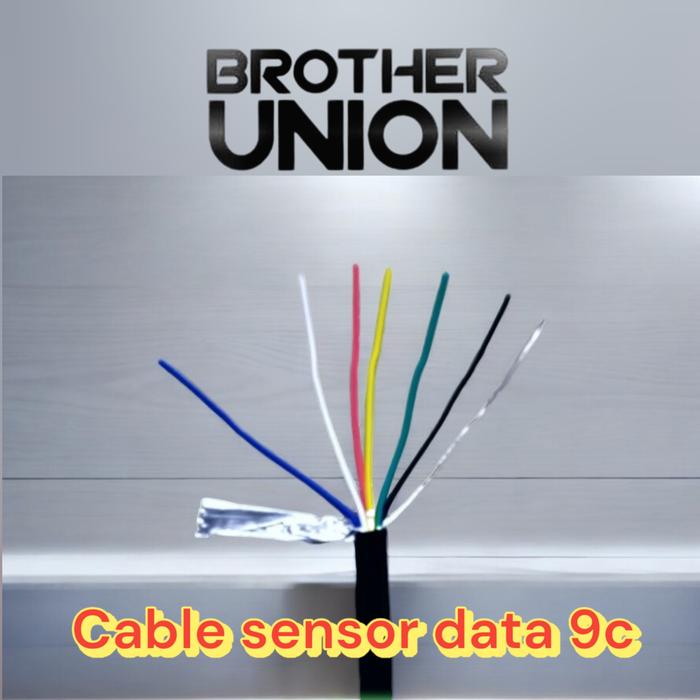

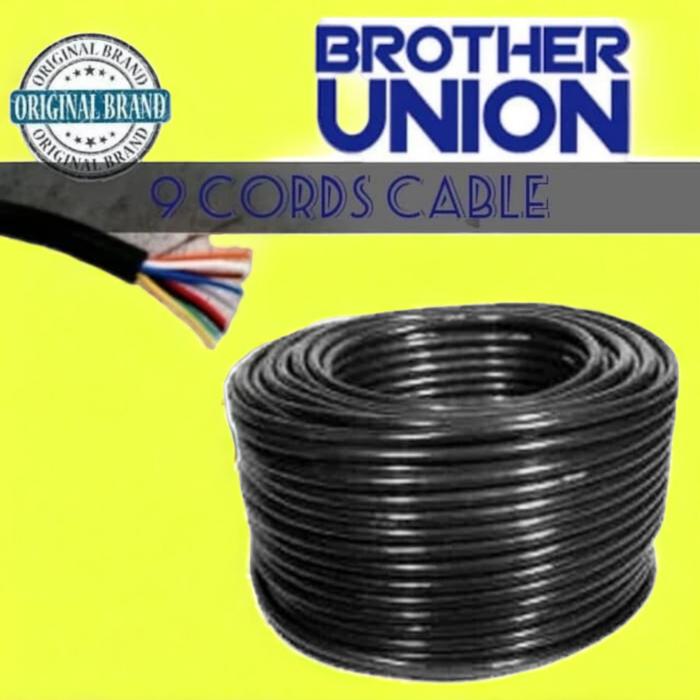

Brother Union 9C 24 AWG Cable is a multi-core stranded data and control cable manufactured in Taiwan.
It features 9 insulated conductors plus 1 bare drain wire for ground, protected by aluminum Mylar shielding and a durable black PVC outer jacket.
Key Technical Specifications
- Conductor Count: 9 Cores (9C) + 1 Ground / Drain Wire
- Wire Gauge: 24 AWG (Stranded / Serabut)
- Shielding: Aluminum/Mylar foil with a drain wire to minimize signal interference
- Outer Sheath: Flexible Black PVC jacket

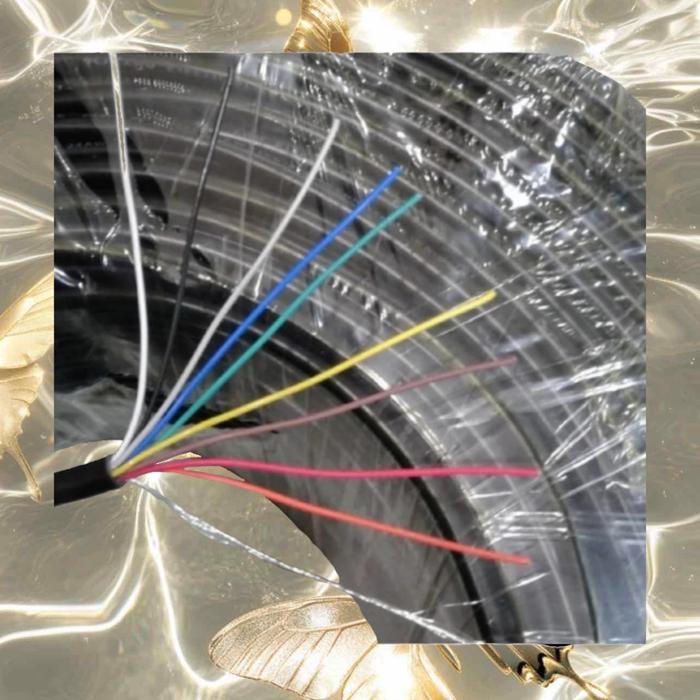

- Internal Core Colors: Black, Brown, Red, Orange, Yellow, Green, Blue, Purple, and Grey
Common Applications
This shielded multi-core cable is primarily engineered for reliable data communication, industrial automation, and signaling. It is widely used for:
- Serial Communications: Ideal for constructing RS-232, RS-422, or RS-485 serial communication lines.
- Industrial Systems: Connecting PLC units, sensors, controllers, and industrial panel wiring.
- Peripherals & Power: Linking printer serial ports, laboratory machinery, and UPS data monitoring systems.
